6SL3300-1AE32-5AA0 Overview
6SL3300-1AE32-5AA0 is a SINAMICS S120 braking module for Chassis Unit GX drive systems. It dissipates regenerated energy through a compatible external braking resistor during controlled deceleration. Match the chassis frame, DC-link voltage and braking-resistor duty before ordering.
Technical and Ordering Information
| Product type | SINAMICS S120 braking module |
|---|---|
| Chassis compatibility | Chassis Unit GX |
| DC link input | 600 V DC to 675 V DC |
| Braking rating | 250 kW / 15 s duty cycle |
| Protection | IP20 |
| Cooling | Cabinet forced-air clearance required |
| Warranty | 1 year |
Buyer and Engineering Checks
- Match the Chassis Unit GX frame and DC-link voltage.
- Confirm the braking-resistor value, duty cycle and installation clearances.
- Check cabinet airflow, terminals and the existing SINAMICS drive configuration.

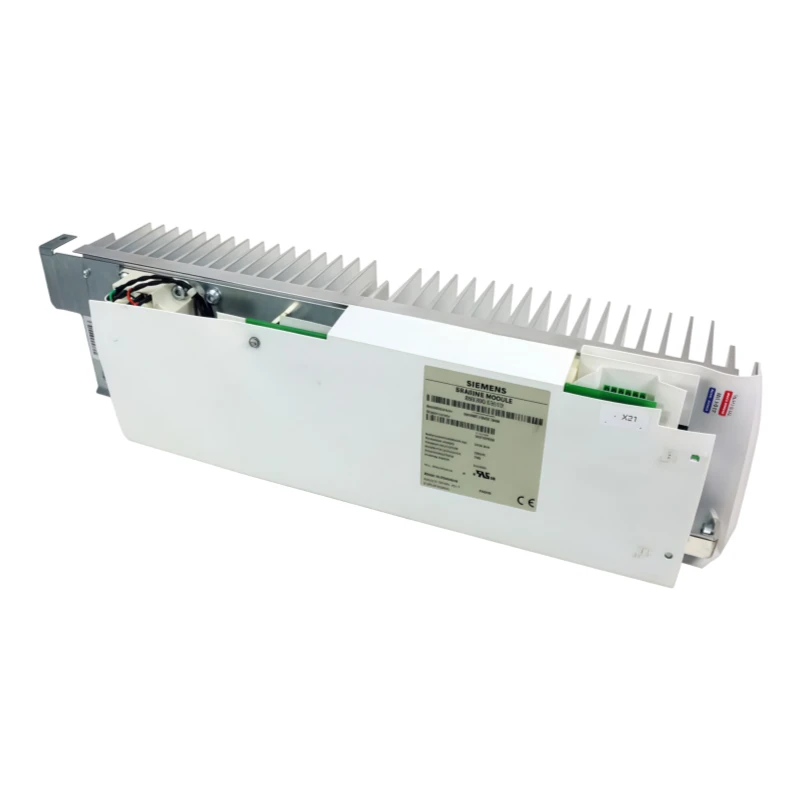

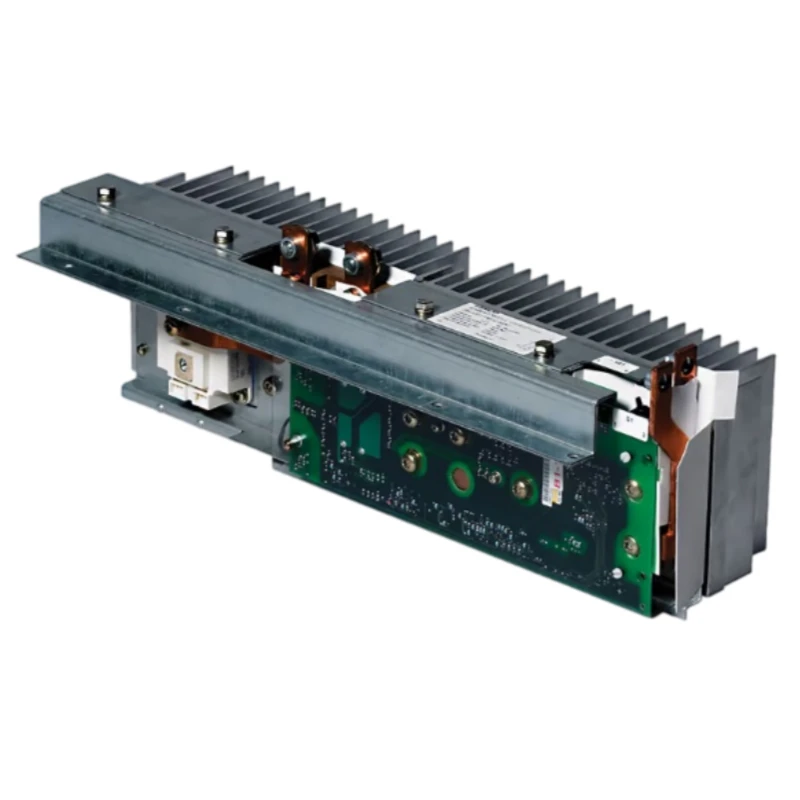

Product View
Quotation Support
Send 6SL3300-1AE32-5AA0, required quantity and delivery destination for current stock, packing and delivery confirmation.
