Products Description

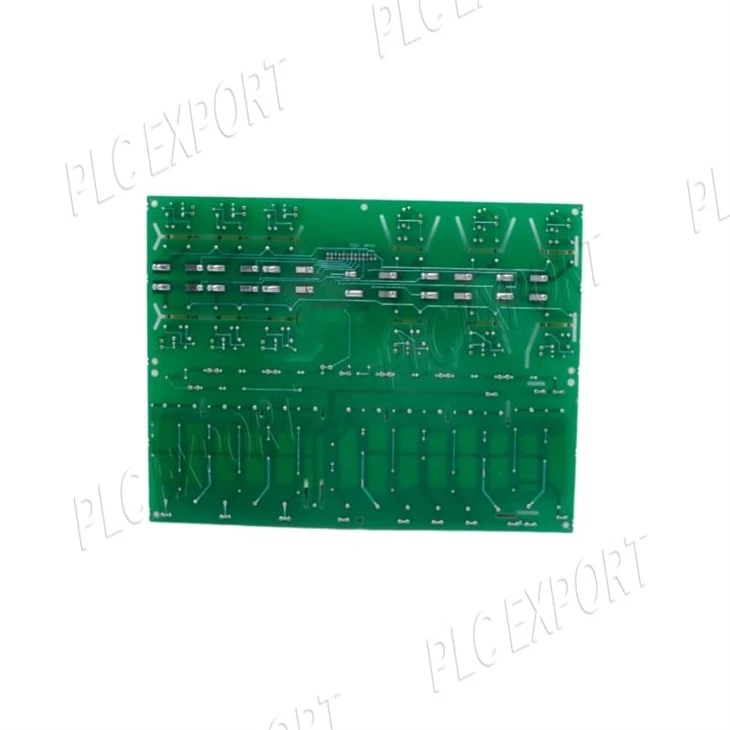

The DS200PCCAG7ACB DC Power Connect Board is an industrial electronic board designed for power distribution and control within GE Mark V turbine and DC2000 drive systems. The board serves as a critical connection interface that links the drive system with the SCR power bridge, ensuring stable power transfer and coordinated system operation.
This board supports reliable power management in high-performance industrial environments and plays an important role in maintaining the stability of turbine control and drive applications. Due to its integrated design, the board is not user-repairable and is typically replaced entirely if a malfunction occurs.
Functional Role / System Position
Within a Mark V or DC2000 drive architecture, the DS200PCCAG7ACB board functions as a power interface module responsible for managing connections between the drive electronics and the SCR power bridge. It distributes DC power signals, coordinates control connections, and ensures safe operation of the drive system.
The board also supports system configuration through onboard jumper settings, allowing adjustments for different drive configurations, system voltages, and frame sizes used in industrial equipment.
Key Features / Functional Capabilities
- Acts as the power connection interface between DC2000 drive systems and SCR bridge circuits
- Supports stable power distribution for industrial turbine and drive control systems
- Compatible with C-frame and G-frame system configurations
- Integrated AC and DC snubber support for enhanced electrical protection
- Includes configurable hardware jumpers for system setup and customization
- Designed for long-term reliability in high-power industrial control environments
Application Areas / Typical Use Cases
- Supplying power to GE PLCs and distributed automation modules
- Industrial process control systems requiring reliable DC power
- Machine control panels in manufacturing plants
- Redundant or backup power arrangements for critical automation equipment
- Replacement or upgrade of existing DIN-rail power supply modules
Parameter Table
| Parameter | Specification |
|---|---|
| Product Model | DS200PCCAG7ACB |
| Board Type | DC Power Connect Board |
| Series | GE DC2000 / Mark V |
| Functional Abbreviation | PCCA |
| Voltage Compatibility | < 600 V RMS AC |
| Frame Compatibility | C-frame and G-frame systems |
| Hardware Jumpers | 4 configurable jumpers |
| PCB Coating | Standard industrial coating |
| Dimensions | Approx. 11 in × 8.5 in |
| System Integration | SCR power bridge and drive interface |
| Functional Revisions | A and C |
| Instruction Manual | GEI-100161 |
Contact Information
For pricing, availability, or technical consultation regarding this model, please contact our sales team:
【Sales Manager】
Silver
【WhatsApp】
+86-18020714492
【Email】
sales1@askplc.com
【WeChat】
+86-18020714492
FAQ
Q1: What is the primary purpose of the DS200PCCAG7ACB board?
It provides the electrical interface between the DC drive system and the SCR power bridge, enabling stable power distribution.
Q2: Which control systems use this board?
It is commonly used in GE Mark V turbine control systems and DC2000 drive systems.
Q3: What does the "G7" in the part number represent?
It indicates that the board belongs to Group 7 of the PCCA board family, affecting compatibility with system voltage and frame size.
Q4: Can the board be repaired if it fails?
No, it is designed as a non-repairable module and typically requires full replacement if damaged.
Q5: Does the board support system configuration adjustments?
Yes, it includes adjustable hardware jumpers that allow customization for specific system setups.
